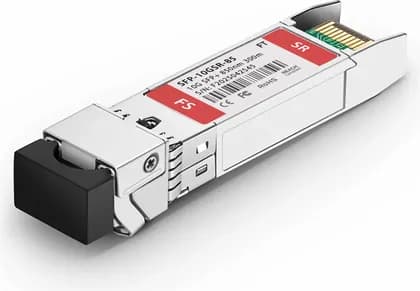

FN-TRAN-SFP+SR
Fortinet FN-TRAN-SFP+SR Compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards and for seamless interoperability in multivendor environments. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc. Supports 10G-to-40G upgrades for campus aggregation networks, with flexible options including 40G uplinks, 10G downlinks, and 40G breakout to 4×10G, suitable for campus and data center deployments.
Specifications
| Fortinet Compatible |
FN-TRAN-SFP+SR |
| Vendor Name |
FS |
| Form Factor |
SFP+ |
| Max. Data Rate |
10.3125 Gbps |
| Wavelength |
850 nm |
| Max. Transmission Distance |
300 m @ OM3 / 400 m @ OM4 |
| Connector |
Duplex LC |
| Media |
MMF |
| Transmitter Type |
VCSEL |
| Receiver Type |
PIN |
| TX Power |
-7.3 to -1 dBm |
| Receiver Sensitivity |
< -11.1 dBm |
| Power Budget |
3.8 dB |
| Receiver Overload |
-1 dBm |
| Max. Power Consumption |
≤ 1 W |
| Extinction Ratio |
> 3 dB |
| DDM/DOM |
Supported |
| Operating Temperature |
0 to 70°C (32 to 158°F) |
| Core Size |
50/125 µm |
| Modulation |
NRZ |
| BER |
1E-12 |
| MTBF |
11,300,000 Hours @ 40°C, 90% CL |
