| HARDWARE FEATURES |
| Interface |
1 × 10/100/1000 Mbps LAN/WAN Port
2 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
2 × External SMA-F Antenna Interface |
| Power Supply |
12V/1.5A |
| Dimensions (W x D x H) |
212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in) |
| Antenna |
2 Detachable External LTE Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/n/ac 5 GHz
IEEE 802.11b/g/n 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps at 2.4 GHz
867 Mbps at 5 GHz |
| Reception Sensitivity |
5 GHz:
- 11a 54M: -77 dBm
- 11ac HT20: -73 dBm
- 11ac HT40: -68 dBm
- 11ac HT80: -64 dBm
- 11n HT20: -77 dBm
- 11n HT40: -73 dBm
2.4 GHz:
- 11g 54M: -74 dBm
- 11n HT20: -72 dBm
- 11n HT40: -69 dBm |
| Transmit Power |
< 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio
Wireless Schedule
WMM
Wireless Statistics |
| WAN Failover |
Yes |
| Wireless Security |
64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Network Type |
Compatible with 4G/3G networks:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
TDD-LTE: B38/B40/B41
DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 |
| SOFTWARE FEATURES |
| Quality of Service |
Prioritizes network traffic by device |
| Security |
DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering |
| WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access) |
| Management |
TP-Link Cloud, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDns, NO-IP |
| VPN |
PPTP VPN, OpenVPN |
| Parental Controls |
URL Filtering, Time Controls |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network x 1
5 GHz Guest Network x 1 |
| OTHERS |
| Certification |
CE, RoHS |
| Package Contents |

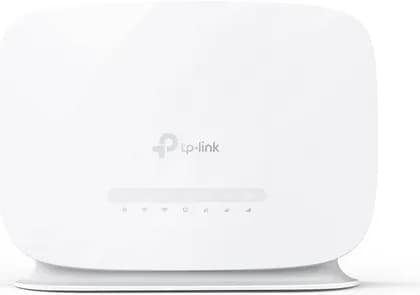

4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
