| Dimensions (W × H × D) |
2U; 438 × 87.5 × 815 mm |
| Motherboard |
MZ93-FS1 |
| CPU |
AMD EPYC™ 9005 Server Processors; AMD EPYC™ 9004 Server Processors; Dual processors; cTDP up to 400 W (-ACJ1); cTDP up to 500 W (-ADJ1) |
| CPU Note |
If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
| Socket |
2 × LGA 6096; Socket SP5 |
| Chipset |
System on Chip |
| Memory |
24 × DIMM slots; DDR5 RDIMM; 12-channel memory per processor |
| Memory Speed |
AMD EPYC™ 9005: Up to 6400 MT/s; AMD EPYC™ 9004: Up to 4800 MT/s |
| LAN |
Rear (G-SCM board - CDCR114): 2 × 1 Gb/s LAN (1 × Intel® I350-AM2), NCSI support; 1 × 10/100/1000 Mb/s Management LAN |
| Video |
Integrated in ASPEED® AST2600; 1 × Mini-DP |
| Storage – Front Hot-Swap |

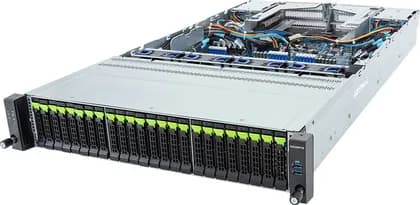

24 × 2.5" Gen5 NVMe; 12 × NVMe from CPU_0, 12 × NVMe from CPU_1 |
| Storage – Rear Hot-Swap |
4 × 2.5" SATA/SAS-4; SATA via CRS2810 from CPU_1 |
| Storage – Internal M.2 |
1 × M.2 (2280/22110), PCIe Gen3 x4 from CPU_0; 1 × M.2 (2280/22110), PCIe Gen3 x4 from CPU_1, occupied for SATA; 1 × M.2 (2280/22110), PCIe Gen3 x2 from CPU_1 |
| Storage Note |
SAS card required to support SAS drives; SATA hotplug utility available on support page |
| SAS |
Requires SAS add-in cards |
| RAID |
Requires RAID add-in cards |
| Optional RAID Cards |
NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology; SR-1000-FD32, SR-1010-FD32; RAID 0/1/5/6/10 support |
| PCIe Expansion Slots |
1 × FHHL x16 (Gen5 x16) from CPU_0; 1 × OCP NIC 3.0 (Gen5 x16) from CPU_0, disabled; 1 × OCP NIC 3.0 (Gen5 x16) from CPU_1 with NCSI support |
| Front I/O |
2 × USB 3.2 Gen1 Type-A; 1 × Power button with LED; 1 × ID button with LED; 1 × NMI button; 1 × Reset button; 2 × LAN activity LEDs; 1 × Storage activity LED; 1 × System status LED |
| Rear I/O |
G-SCM board - CDCR114; 2 × USB 3.2 Gen1 Type-A; 1 × Mini-DP; 2 × RJ45 ports; 1 × MLAN port; 1 × ID LED |
| Backplane Board |
Front - CBP2081: PCIe Gen5 x4; Front - CBP20G0: PCIe Gen5 x4; Rear - CBP2025: SATA 6 Gb/s or SAS-4 24 Gb/s |
| Security Modules |
1 × TPM header with SPI interface; Optional TPM 2.0 kit: CTM010 |
| Power Supply |
Dual 2000 W 80 PLUS Titanium redundant power supplies |
| AC Input |
100–127V~ / 12A, 50/60Hz; 200–240V~ / 10A, 50/60Hz |
| DC Input |
240Vdc / 10A (China only) |
| DC Output – 100–127V |
Max 1000W; +12.2V / 82A; +12Vsb / 3A |
| DC Output – 200–207V |
Max 1800W; +12.2V / 147.5A; +12Vsb / 3A |
| DC Output – 208–219V |
Max 1900W; +12.2V / 155.7A; +12Vsb / 3A |
| DC Output – 220–240V / 240Vdc |
Max 2000W; +12.2V / 164A; +12Vsb / 3A |
| Power Supply Note |
GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on server configuration, and alternative PSU options may be needed. |
| System Management |
ASPEED® AST2600 Baseboard Management Controller; GIGABYTE Management Console web interface |
| Management Features |
Dashboard; HTML5 KVM; Sensor Monitor; Sensor Reading History Data; FRU Information; SEL Log; Hardware Inventory; Fan Profile; System Firewall; Power Consumption; Power Control; Advanced Power Capping; LDAP/AD/RADIUS Support; Backup & Restore Configuration; Remote BIOS/BMC/CPLD Update; Event Log Filter; User Management; Media Redirection Settings; PAM Order Settings; SSL Settings; SMTP Settings |
| OS Certifications |
VMware ESXi 8.0; VMware ESXi 9.0; VMware ESXi 9.1; Windows Server 2022; Windows Server 2025 |
| System Fans |
4 × 80 × 80 × 38 mm |
| Operating Temperature |
10°C to 35°C |
| Operating Humidity |
8% to 80% (non-condensing) |
| Non-Operating Temperature |
-40°C to 60°C |
| Non-Operating Humidity |
20% to 95% (non-condensing) |
| Net Weight |
29.5 kg |
| Gross Weight |
38 kg |
| Packaging Dimensions |
1082 × 685 × 314 mm (108.2 × 68.5 × 31.4 cm) |
